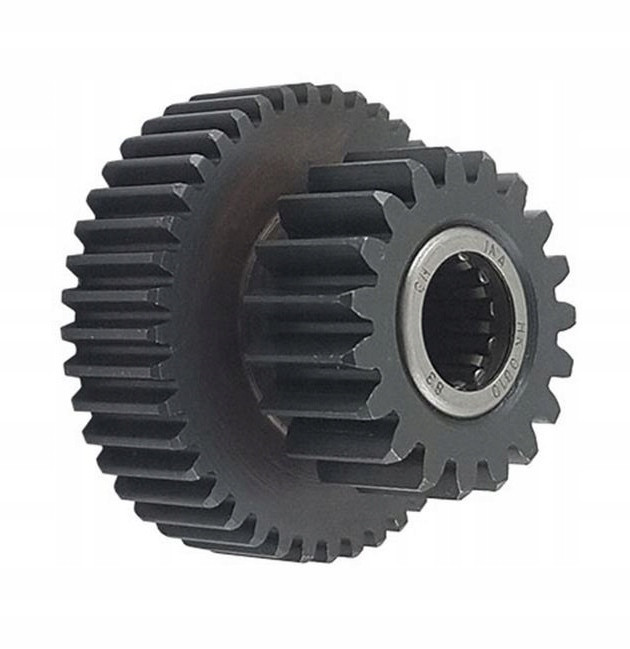

Zobnik udarnega vijačnika Makita TW0350 153626-8

/ Makita koło zębate do klucza udarowego TW0350 153626-8

•
  Producent: Makita



• Kod producenta: 153626-8


• Pozycja na schemacie: 19 - TW0350

Zastosowanie:

Klucz udarowy Makita

• TW0350

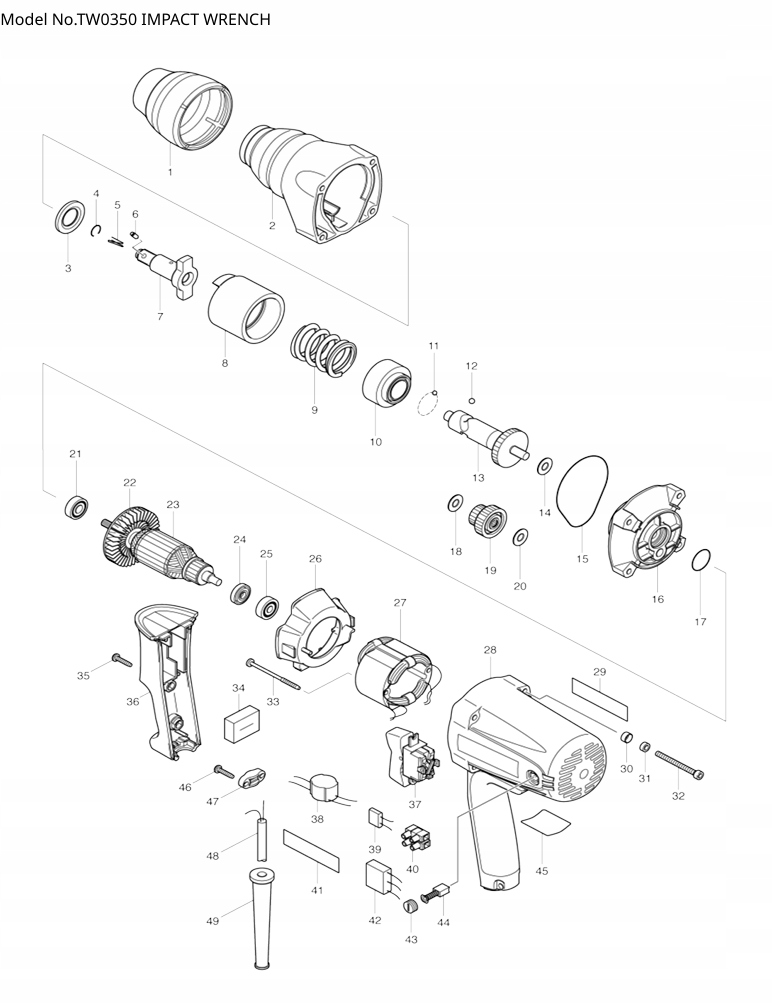

Spis części do TW0350

Pozycja na schemacie ; Nr katalogowy części ; Nazwa części ; Ilość

001 421837-6 BUMPER 1

002 153623-4 HAMMER CASE COMPLETE 1

C10 213257-6 OIL SEAL 18 1

C20 321119-5 SLEEVE 18 1

003 267268-3 FLAT WASHER 19 1

004 231907-1 RING SPRING 10 1

007 324406-1 ANVIL 1

007-1 326983-9 ANVIL 1

008 324336-6 HAMMER 1

009 233383-5 COMPRESSION SPRING 28 1

010 313115-7 SPRING HOLDER 1

011 216008-6 STEEL BALL 4 19

012 216007-8 STEEL BALL 6.4 2

013 324338-2 SPINDLE 1

014 253139-0 FLAT WASHER 8 1

015 421838-4 SEAL RING 1

016 153624-2 HAMMER CASE COVER COMPLETE 1

017 213373-4 O RING 22 1

018 253139-0 FLAT WASHER 8 1

019 153626-8 SPUR GEAR 19-41 COMPLETE 1

020 253139-0 FLAT WASHER 8 1

021 210024-0 BALL BEARING 608LLU 1

022 241884-9 FAN 60 1

023 515263-0 ARMATURE ASS'Y 220-240V 1

024 681614-0 INSULATION WASHER 1

025 210025-8 BALL BEARING 627LLB 1

026 418180-2 BAFFLE PLATE 1

027 528179-0 FIELD ASS'Y 220-240V 1

C10 654100-4 RING TERMINAL 2

C20 654501-6 CONNECTOR P-1.25 2

028A 183604-4 MOTOR HOUSING 1

C10 643455-2 BRUSH HOLDER 6X9 2

028-1A 153625-0 MOTOR HOUSING 1

C10 643455-2 BRUSH HOLDER 6X9 2

C11 643858-0 BRUSH HOLDER 6X9 2

028-1B 153625-0 MOTOR HOUSING 1

C10 643455-2 BRUSH HOLDER 6X9 2

C11 643858-0 BRUSH HOLDER 6X9 2

029A 819064-1 MAKITA MARK 1

030 253929-1 CUP WASHER 5 4

031 262001-8 URETHANE RING 5 4

032 266331-9 HEX. SOCKET HEAD BOLT M5X50 4

033 266091-3 TAPPING SCREW 4X50 2

034A 685700-9 SPONGE SHEET 1

034B 685700-9 SPONGE SHEET 1

035 265995-6 TAPPING SCREW 4X18 2

036 418179-7 HANDLE COVER 1

037 651572-4 SWITCH SL220SD-19 1

037-1 651572-4 SWITCH SL220SD-19 O 1

038 646325-4 LINE COIL 1 *

038-1 646358-9 LINE COIL 1

038-2 646358-9 LINE COIL 1

039 646755-9 RESISTOR 1

039-1 646755-9 RESISTOR 1

040 654531-7 TERMINAL BLOCK 2P 1

040-1 654741-6 TERMINAL BLOCK 1

041A 819064-1 MAKITA MARK 1

042 645253-0 NOISE SUPPRESSOR 1

043 643550-8 BRUSH HOLDER CAP 5-8 2

044 191940-4 CARBON BRUSH CB-411 1

044-1 195010-1 CARBON BRUSH SET CB-411 O 1

045 850644-4 NAME PLATE TW0350 1

046 265995-6 TAPPING SCREW 4X18 2

047 687052-4 STRAIN RELIEF 1

048 665865-3 POWER SUPPLY CORD 1.0-2-2.5 1

049 682566-8 CORD GUARD 10 1

A01A 824702-2 PLASTIC CARRYING CASE 1

C10 186347-7 SLIDE LATCH SET 1

A02 134841-3 SOCKET 24-45 ASS'Y 1

C10 213399-6 O-RING 25 1

C20 268057-9 PIN 4 1

A02-1 137071-5 SOCKET 24-38 ASS'Y 1

C10 422B61-6 Rubber ring 23 1

C11 B-54570 ORING 3PC SET 1/2" SQ 20-32MM 1

C20 256A76-3 Pin 4 1

C21 B-54617 PIN 3PC SET 1/2" SQ 20-32MM 1

A03B 821550-0 CONNECTOR PLASTIC CASE (TYPE2) 1

C10 453974-8 LATCH 4

A04B 802U84-8 TW0350J INDICATION LABEL 1

A05B 802U85-6 TW0350J PLASTIC CASE LABEL 2

A06B 837870-2 INNER TRAY 1

F28 195870-1 DRILL BIT REMOVER SET 1
