VCX 500 V IP20 125 A stikalna naprava
VCX 500 V IP20 125 A stikalna naprava
16,73 €

VCX 500 V IP20 125 A stikalna naprava

VCX 500 V IP20 125 A stikalna naprava
16,73 €

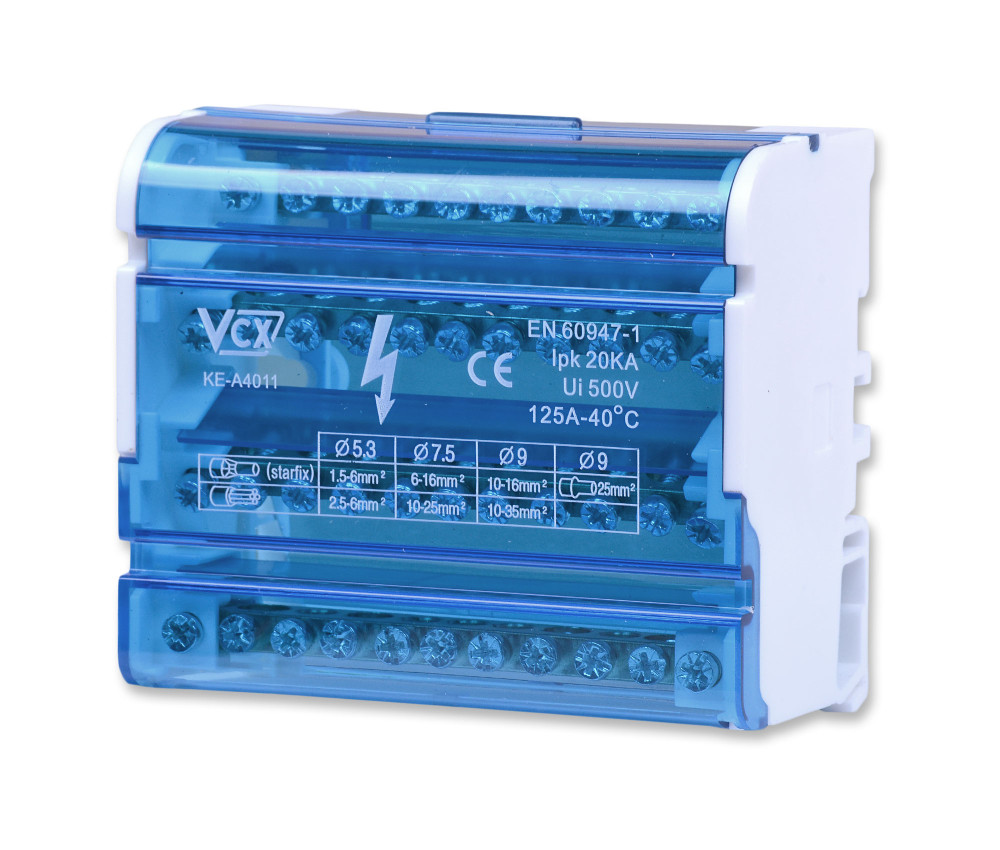

VCX BLK 411 BLOK ROZDZIELCZY ŁĄCZENIOWY 4x11 125A/500V is a high-quality distribution block designed for efficient and safe electrical connections. Manufactured by VCX, this block consists of 4 clamping bars housed in a cover that can be mounted on a mounting plate or TH35 rail. It is used to connect cables with or without cable lugs to separate current paths effectively.

Technical specifications:
- Catalog number: BLK 411
- Rated voltage: 500V
- Rated current: 125A
- lpk: 20kA
- Dimensions: 100 x 45 x 87 mm
- Number of poles: 4
- Total number of connections: 4 x 11
- Flexible mounting wire cross-section (mm2): 10-16
- Wire cross-section (mm2): 2.5-6; 10-25; 10-35
- Hole diameters: 7xø5.5mm; 2xø7.5mm; 2xø9mm
- Mounting: TH35 rail

This distribution block is essential for industrial and commercial electrical installations, providing a secure and reliable connection for various applications. With its robust construction and high-quality materials, the VCX BLK 411 ensures long-lasting pe
