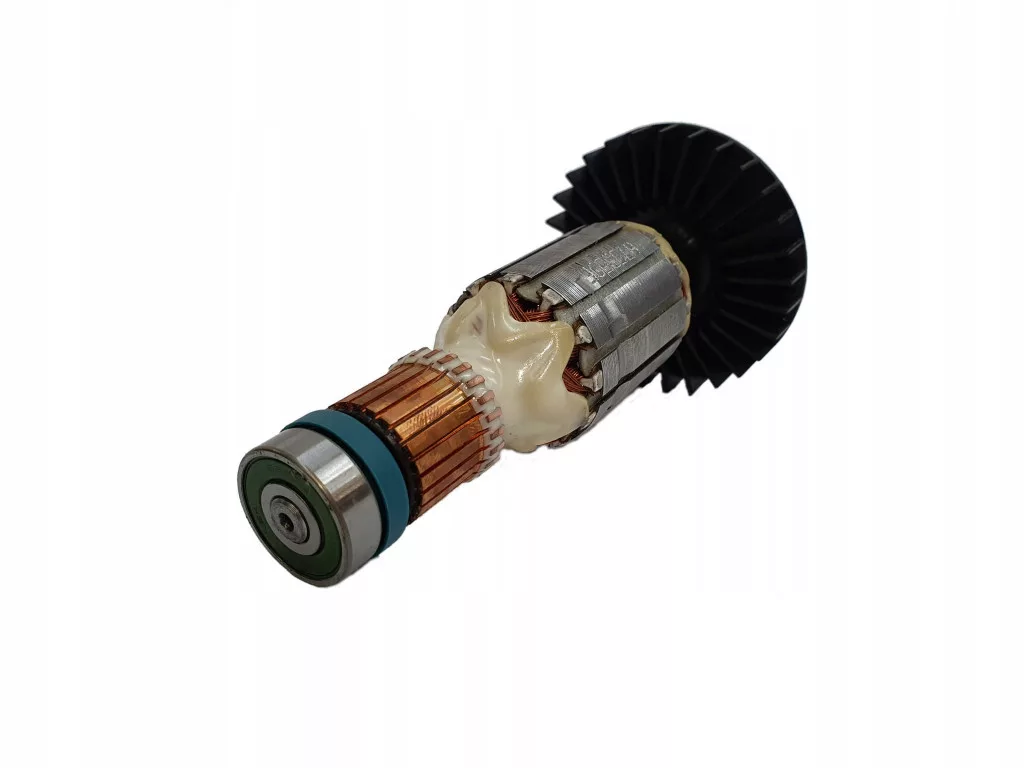

/ Makita wirnik do młotowiertarki HR2600, HR2601, HR2610, HR2610T, HR2630 515359-7

• Producent: Makita


•
  Nr katalogowy: 515359-7



• Pozycja na schemacie: 76 - HR2610

Zastosowanie:

Młotowiertarka Makita

• HR2600


• HR2601


• HR2610


• HR2610T


• HR2611F


• HR2611FT


• HR2630


• HR2630T


• HR2631F


• HR2631FT

Spis części do HR2610

Pozycja na schemacie ; Nr katalogowy części ; Nazwa części ; Ilość

001 286288-8 CAP 35 1

002 451533-2 CHUCK COVER 1

003 325813-1 RING 21 1

004 346177-0 GUIDE WASHER 1

005 233916-6 CONICAL COMP. SPRING 21-29 1

006 233989-9 RING SPRING 14 1

007 346221-3 WASHER 16 1

008 122878-2 GRIP ASSEMBLY 1

009 346181-9 GRIP SPRING 50 1

010 266349-0 SQUARE BOLT M8X50 1

011 451539-0 GRIP BASE 1

012A 313179-1 RACK 1

013A 451540-5 LOCK BUTTON 1

013-1A 141765-6 LOCK BUTTON COMPLETE S 1

013-1B 141765-6 LOCK BUTTON COMPLETE 1

014 233360-7 COMPRESSION SPRING 4 1

015 154935-8 GRIP 36 COMPLETE 1

016 140422-3 GEAR HOUSING COMPLETE 1

C10 213636-8 OIL SEAL 25 1

C20 816445-0 INDICATION LABEL 1

017 331890-3 CUP SLEEVE 1

018 211294-4 BALL BEARING 6806LLU 1

019 232152-1 LEAF SPRING 1

020 325785-0 PUSH CORN 1

020-1 326850-8 PUSH CORN S 1

021 234147-0 COMPRESSION SPRING 5 1

022 253308-3 THIN WASHER 6 1

023 213381-5 O RING 21 1

024 451529-3 CHANGE LEVER A 1

025 451530-8 CHANGE LEVER COVER A 1

026 216022-2 STEEL BALL 7.0 2

027 216019-1 STEEL BALL 3 4

027-1 216068-8 Steel ball 3 4

028 140264-5 TOOL HOLDER COMPLETE 1

029 313149-0 DRIVING FLANGE 1

029-1 332139-4 DRIVING FLANGE S 1

030 227232-6 SPUR GEAR 51 1

030-1 227360-7 SPUR GEAR 51 S 1

031 268226-2 PIN 6 6

032 267414-8 FLAT WASHER 30 1

033 234148-8 COMPRESSION SPRING 31 1

034 267153-0 FLAT WASHER 30 1

035 257932-4 SPIRO LOCK WASHER 30 1

036 267153-0 FLAT WASHER 30 1

037 325782-6 SLEEVE 9A 1

038 325789-2 IMPACT BOLT A 1

039 325794-9 RING 10A 1

040 424267-0 CUSHION RING 12 1

041 325798-1 O-RING CASE A 1

042 213073-6 O RING 9 1

043 233979-2 RING SPRING 28 1

044 325784-2 STRIKER 1

045 213258-4 O RING 17.5 1

046 310345-1 PISTON CYLINDER 1

047 346036-8 GUIDE PLATE 1

048 324215-8 PISTON JOINT 1

049 234098-7 COMPRESSION SPRING 14 1

050 211012-0 BALL BEARING 606ZZ 1

050-1 210028-2 BALL BEARING 606ZZ O 1

051A 961012-7 STOP RING E-6 1

051-1A 257336-0 STOP RING EXT U-6 S 1

051-1B 257336-0 STOP RING EXT U-6 1

052A 267449-9 FLAT WASHER 7 1

052-1A 253186-1 FLAT WASHER 7 S 1

052-1B 253186-1 FLAT WASHER 7 1

053 233360-7 COMPRESSION SPRING 4 1

054 346176-2 LOCK PLATE 1

055 325786-8 CAM SHAFT 1

056 227231-8 SPUR GEAR 10 1

057 331814-9 CLUTCH CAM A 1

057-1 326849-3 CLUTCH CAM A S 1

058 219020-5 SWASH BEARING 10 1

059 267234-0 FLAT WASHER 8 1

060 310344-3 BEARING BOX 1

061 211032-4 BALL BEARING 608ZZ 1

062 266437-3 HEX. SOCKET HEAD BOLT M4X16 2

063 285735-6 BEARING RETAINER 1

064 227719-8 HELICAL GEAR 26 1

065 213728-3 O-RING 68 1

068A 443153-6 FELT 1

069A 140269-5 INNER HOUSING COMPLETE 1

069-1A 141572-7 INNER HOUSING COMPLETE 1

069-2A 141572-7 INNER HOUSING COMPLETE 1

069-2B 141572-7 INNER HOUSING COMPLETE 1

070 213407-3 O RING 26 1

071A 213133-4 OIL SEAL 12 1

071-1A 213678-2 OIL SEAL 12 1

071-1B 213678-2 OIL SEAL 12 1

072 262569-4 SLEEVE 9 1

072-1 262207-8 SLEEVE 9 1

073 211097-6 BALL BEARING 6000LLB 1

074 961006-2 RETAINING RING S-10 1

075 240121-8 FAN 65 1

076 515359-7 ARMATURE ASSEMBLY 240V 1

077 681652-2 INSULATION WASHER 1

078 210023-2 BALL BEARING 627DDW 1

079 267804-5 WAVE WASHER 15 1

083 266361-0 TAPPING SCREW 4X30 2

084 451527-7 BAFFLE PLATE 1

085 626634-7 FIELD 240V 1

085-1 626634-7 FIELD 240V 1

086 451536-6 MOTOR HOUSING 1

087 867699-2 HR2610 NAME PLATE 1

088 819390-8 CLEAR LABEL 1

089 194074-2 CARBON BRUSH CB-325 1

090 638655-7 BRUSH HOLDER UNIT 1

091 266556-5 TAPPING SCREW 3X12 2

092 266361-0 TAPPING SCREW 4X30 4

093 867702-9 HR2610 SERIAL NO.LABEL 1

094 819389-3 CLEAR LABEL 1

095 682566-8 CORD GUARD 10 1

096 665890-4 POWER SUPPLY CORD 1.0-2-4.0 1

097 650625-6 SWITCH 1 *

097-1 651090-2 SWITCH TG853TB-3 O 1

099 687682-1 STRAIN RELIEF 1

100 266385-6 TAPPING SCREW 4X14 1

101 266326-2 TAPPING SCREW 4X18 1

102 451528-5 HANDLE COVER 1

103 266326-2 TAPPING SCREW 4X18 2

104 267447-3 FLAT WASHER 14 1

105 233992-0 RING SPRING 15 1

106 267437-6 FLAT WASHER 17 1

107 424364-2 RUBBER WASHER 16 1

A01 331886-4 DEPTH GAUGE 1

A02A 140402-9 PLASTIC CASE COMPLETE 1

C10 162302-3 LATCH 2

C20 324207-7 SHAFT 1

C30 451749-9 HANDLE 1

C40 816938-7 INDICATION LABEL 1

A02B 142455-4 CONNECTOR P.CASE(TYPE2) CO MP = 1

C10 453974-8 LATCH 4

C20 802S90-1 INDICATION LABEL 1

A03A 816978-5 HR2610 PLASTIC CASE LABEL 2

A03B 802S25-2 HR2610J PLASTIC CASE LABEL 2

A06B 802P01-8 HR2610J INDICATION LABEL 1

A07B 837651-4 INNER TRAY 1

F32 195127-0 OIL VESSEL SET 1
