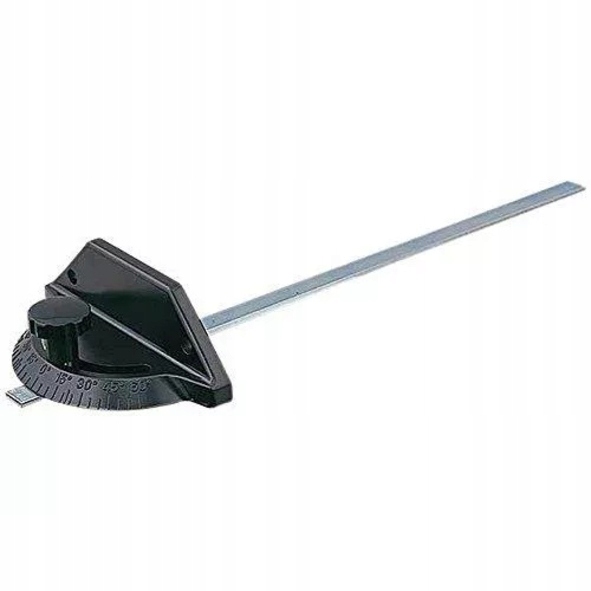

Makita KOTNO VODILO ZA LF1000 122730-4

Makita PROWADNICA KĄTOWA DO PILARKI STOŁOWEJ / UKOŚNICY LF1000

•
  Producent: Makita



•
  Kod EAN: 88381288477


•
  Kod producenta: 122730-4


•
  Pozycja na schemacie: A05-1

Lista części

1 265999-8 TAPPING SCREW 4X25 2

2 265995-6 TAPPING SCREW 4X18 2

003-1 687149-9 STRAIN RELIEF 1

4 662971-5 POWER SUPPLY CORD 1.0-6-1.56 1

5 682506-6 CORD GUARD 12-90 1

6 688140-0 LINE FILTER 1

7 687010-0 BAND 1

8 645006-7 NOISE SUPPRESSOR 1

9 265995-6 TAPPING SCREW 4X18 2

10 416356-5 LOCK-OFF LEVER 1

011-1 233483-1 COMPRESSION SPRING 4 1

12 416404-0 SWITCH BUTTON 1

13 651923-1 SWITCH TG70B 1

14 651941-9 SWITCH V-15-2A5 1

15 416357-3 SWITCH LEVER 1

016-1 188063-7 HANDLE SET 1

016-1 C10 810087-2 CAUTION LABEL 1

016-1 D10 INC. 263

17 265995-6 TAPPING SCREW 4X18 4

18 861365-3 LF1000 NAME PLATE 1

19 911383-2 PAN HEAD SCREW M6X60 4

020-1 631947-3 CONTROLLER 1

21 265995-6 TAPPING SCREW 4X18 1

22 416362-0 REAR COVER 1

23 265995-6 TAPPING SCREW 4X18 2

024-1 643650-4 BRUSH HOLDER CAP 6.5-13.5 2

25 181044-0 CARBON BRUSH CB-153 1

26 154569-7 MOTOR HOUSING COMPLETE 1

26 C13 643653-8 BRUSH HOLDER 6.5-13.5 2

26 C14 643536-2 BRUSH HOLDER 6.5X13.5 2

26 C15 643653-8 BRUSH HOLDER 6.5-13.5 2

26 C16 643536-2 BRUSH HOLDER 6.5X13.5 2

26 C20 810086-4 CAUTION LABEL 1

27 596273-6 FIELD ASS'Y 220-240V 1

27 C10 654020-2 RING TERMINAL 2

27 C20 654502-4 CONNECTOR P-2 2

28 266044-2 TAPPING SCREW 5X60 2

29 416361-2 BAFFLE PLATE 1

30 211061-7 BALL BEARING 6000LLB 1

31 681642-5 INSULATION WASHER 1

32 516748-9 ARMATURE ASS'Y 220-240V 1

32 D10 INC. 30,31,34,35,264

33 345574-7 SHAFT LOCK 1

034-1 267320-7 FLAT WASHER 15 1

35 211206-7 BALL BEARING 6202LLB 1

036-1 233467-9 COMPRESSION SPRING 9 1

37 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

38 416006-2 LEVER 100 1

39 252192-3 HEX.NUT M10-17 1

040-2 231266-3 COMPRESSION SPRING 5 1

41 331691-9 SPACER 1

042-1 264005-6 HEX. LOCK NUT M10-17 1

43 253197-6 FLAT WASHER 10 1

44 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

45 816825-0 INDICATION PLATE 1

046-1 265551-2 HEX. SOCKET HEAD BOLT M6X20 1

047-1 267325-7 FLAT WASHER 6 1

48 257270-4 RING 6 1

049-1 141540-0 LINK PLATE COMPLETE 1

50 265532-6 HEX.BOLT M10 1

051-1 267323-1 FLAT WASHER 16 1

052-1 141133-3 ARM COMPLETE 1

052-1 C10 816833-1 BEVEL SCALE LABEL 1

53 231681-1 TORSION SPRING 34 1

54 416358-1 SLEEVE 17 2

55 256488-4 PIN 7 1

56 233429-7 COMPRESSION SPRING 7 1

57 271601-3 KNOB 20 1

58 951063-8 SPRING PIN 3-16 1

59 687049-3 STRAIN RELIEF 1

60 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

61 271319-6 KNOB 40 1

062-1 216030-3 STEEL BALL 6 2

63 257750-0 SLEEVE 13 1

64 257748-7 SLEEVE 6 1

065-1 267313-4 FLAT WASHER 6 1

066-1 265552-0 HEX. SOCKET HEAD BOLT M6X30 1

67 331689-6 ADJUST NUT 1

68 922557-0 HEX. SOCKET HEAD BOLT M10X35 1

69 942251-8 SPRING WASHER 10 1

70 941252-3 FLAT WASHER 10 1

71 257747-9 SLEEVE 10 1

72 265984-1 HEX.SOCKET BUTTON HEAD BOLT M6 1

073-1 267326-5 FLAT WASHER 7 1

74 345553-5 STOPPER PLATE 1

75 216004-4 STEEL BALL 7.9 1

076-1 233466-1 COMPRESSION SPRING 6 1

77 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

78 266085-8 H.S.SET SCREW(FLAT POINT)M6X10 1

79 931502-4 HEX. NUT M10 1

80 942251-8 SPRING WASHER 10 1

81 941252-3 FLAT WASHER 10 1

82 317889-2 CONNECTING ROD 1

083-1 419277-0 DUST NOZZLE 1

84 213460-9 O RING 35 1

85 253197-6 FLAT WASHER 10 1

86 931302-2 HEX. NUT M6 1

87 921342-8 HEX. BOLT M6X25 1

88 257746-1 SLEEVE 5 1

089-1 265550-4 HEX. SOCKET HEAD BOLT M5X20 1

90 266085-8 H.S.SET SCREW(FLAT POINT)M6X10 2

91 317887-6 SUB ARM 1

92 266377-5 BOLT M10 1

93 912112-6 COUNTERSUNK HEAD SCREW M4X10 2

94 231836-8 TENSION SPRING 4 1

095-1 453711-0 SAFETY COVER 1

096-1 210043-6 BALL BEARING 608LLB 1

97 961055-9 RETAINING RING S-15 1

98 226600-0 HELICAL GEAR 46 1

99 254202-2 KEY 4 1

100 257266-5 RING 15 1

101 213623-7 O RING 46 1

102-1 285846-7 BEARING RETAINER 25-36 1

103 211206-7 BALL BEARING 6202LLB 1

104 317888-4 BEARING BOX 1

105 912222-9 COUNTERSUNK HEAD SCREW M5X16 4

106 961201-4 RETAINING RING S-42 1

107 224333-1 FLANGE 53 1

108-1 257295-8 RING 16 1

109 324543-1 SPINDLE 1

110 224400-2 OUTER FLANGE 53 1

111-1 266762-2 HEX. SOCKET HEAD BOLT M8X22 1

112-1 266763-0 HEX. SOCKET HEAD BOLT M8X97 1

113 942201-3 SPRING WASHER 8 1

114-1 267312-6 FLAT WASHER 8 1

116 163461-6 RIVING KNIFE 1

117 331690-1 KNIFE SUPPORT 1

118-1 267312-6 FLAT WASHER 8 1

119 252641-0 WING NUT M8 1

120 961011-9 STOP RING E-4 1

121 154571-0 BLADE CASE COMPLETE 1

121 C10 268076-5 PIN 6 2

121 C20 817667-5 CAUTION LABEL 1

121 C30 819174-4 MAKITA LOGO LABEL 1

121 C40 951163-4 SPRING PIN 5-20 1

122-1 324664-9 GUARD SHAFT 1

123 345554-3 GUARD 1

124 345558-5 GUARD HOLDER 1

125 911213-7 PAN HEAD SCREW M5X12 1

126-1 267327-3 FLAT WASHER 10 1

127 231675-6 TORSION SPRING 11 1

128 265533-4 HEX.BOLT M6 1

129-1 210043-6 BALL BEARING 608LLB 1

130-1 267313-4 FLAT WASHER 6 1

131 961012-7 STOP RING E-6 1

132 421589-9 CAP 1

133 345552-7 LOCK LEVER 1

134-1 233467-9 COMPRESSION SPRING 9 1

135 256855-3 ROD 8 1

136 911113-1 PAN HEAD SCREW M4X10 WITH WR 2

137 912112-6 COUNTERSUNK HEAD SCREW M4X10 9

138 912112-6 COUNTERSUNK HEAD SCREW M4X10 9

139 345541-2 SLIDE PLATE L 1

140 345542-0 SLIDE PLATE R 1

141-1 265551-2 HEX. SOCKET HEAD BOLT M6X20 4

142-1 141631-7 TURN TABLE COMPLETE 1

142-1 C10 256253-1 PIN 5 1

143 251815-0 SCREW M6X25 1

144 268068-4 PIN 5 1

147 911113-1 PAN HEAD SCREW M4X10 WITH WR 2

148 816827-6 SCALE PLATE R 1

149 816826-8 SCALE PLATE L 1

150 911113-1 PAN HEAD SCREW M4X10 WITH WR 2

153-2 142820-7 GUIDE FENCE COMPLETE 1

153-2 C10 256253-1 PIN 5 2

154-1 266392-9 H.S.SET SCREW(FLATPOINT)M10X12 1

155-1 233466-1 COMPRESSION SPRING 6 1

156 216004-4 STEEL BALL 7.9 1

157 265710-8 THUMB SCREW M6X33 1

158-1 188862-7 FRAME SET 1

158-1 D10 INC. 273

159 345547-0 HOOK 1

160 331687-0 SQUARE PIPE 32-510 1

161 931302-2 HEX. NUT M6 3

162 418927-4 FOOT 3

163 154592-2 SUPPORT BRACKET COMPLETE 1

163 C10 816831-5 INDICATION LABEL 1

164 921367-2 HEX. BOLT M6X45 4

165 687049-3 STRAIN RELIEF 1

166 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

167 687049-3 STRAIN RELIEF 1

168 911113-1 PAN HEAD SCREW M4X10 WITH WR 1

169 931502-4 HEX. NUT M10 4

170 942251-8 SPRING WASHER 10 4

171-1 267328-1 FLAT WASHER 10 4

172-1 265553-8 HEX. SOCKET HEAD BOLT M8X20 8

173 331686-2 SQUARE PIPE 32-475 1

174-1 267321-5 FLAT WASHER 8 2

175 961012-7 STOP RING E-6 2

176 257749-5 SLEEVE 8 4

177 961012-7 STOP RING E-6 4

178 961012-7 STOP RING E-6 4

179-1 267321-5 FLAT WASHER 8 4

180 345543-8 BRACKET 4

181-1 267321-5 FLAT WASHER 8 4

182 268127-4 PIN 8 4

183 345548-8 STOPPER HOOK 2

185 268127-4 PIN 8 4

186-1 267321-5 FLAT WASHER 8 2

187 268141-0 PIN 8 2

188-1 267312-6 FLAT WASHER 8 4

189 931302-2 HEX. NUT M6 4

190 418925-8 FOOT BOLT 1

191-1 233468-7 COMPRESSION SPRING 13 1

192 418926-6 FOOT NUT 1

193 265995-6 TAPPING SCREW 4X18 4

194 687209-7 BAND 1

195 682540-6 CORD GUARD 9.3-90 1

196 652772-9 RELAY 305.232.01 1

197 418924-0 SWITCH BOX COVER 1

198 911148-2 PAN HEAD SCREW M4X25 3

199 654561-8 TERMINAL BLOCK 1

200 645206-9 NOISE SUPPRESSOR 1

201 686035-1 RECEPTACLE SLEEVE 5

202 418618-7 PIN 1

203-1 233464-5 COMPRESSION SPRING 8 1

204 443103-1 FELT RING 6 1

205-1 267322-3 FLAT WASHER 7 1

206 418617-9 SWITCH BUTTON OFF 1

207 418616-1 SWITCH BUTTON ON 1

208-1 267322-3 FLAT WASHER 7 1

209 443103-1 FELT RING 6 1

210-1 233464-5 COMPRESSION SPRING 8 1

211 418618-7 PIN 1

212 418929-0 SWITCH COVER 1

213 231682-9 TORSION SPRING 5 1

214 331686-2 SQUARE PIPE 32-475 1

215 418923-2 SWITCH BOX 1

216 682511-3 GROMMET 1

216-1 682103-8 GROMMET 1

217-1 687149-9 STRAIN RELIEF 1

218 265995-6 TAPPING SCREW 4X18 2

219 692527-0 POWER SUPPLY CORD 1.0-2-2.5 1

220-1 687124-5 STRAIN RELIEF 1

221 265995-6 TAPPING SCREW 4X18 2

222 931302-2 HEX. NUT M6 4

223-1 267312-6 FLAT WASHER 8 4

224 331686-2 SQUARE PIPE 32-475 1

225 345546-2 SUPPORT BRACKET 1

226 921367-2 HEX. BOLT M6X45 4

227 154593-0 PIPE 32 COMPLETE 2

227 C10 819212-2 MAKITA LOGO LABEL 2

228 154572-8 TABLE COMPLETE 1

228 C10 810086-4 CAUTION LABEL 1

228 C20 810965-6 CAUTION LABEL 1

229 266360-2 SCREW M10 2

231-1 410047-0 WRENCH HOLDER 5.6 1

232-1 266391-1 SHOULDER SCREW M6 2

233-1 265554-6 HEX. SOCKET HEAD BOLT M8X25 1

234 257749-5 SLEEVE 8 1

235 418931-3 CAP 2

236-1 816856-9 INDICATION PLATE 1

237 911108-4 PAN HEAD SCREW M4X8 1

238-1 265551-2 HEX. SOCKET HEAD BOLT M6X20 9

239 257749-5 SLEEVE 8 1

240-1 265554-6 HEX. SOCKET HEAD BOLT M8X25 1

241-1 188862-7 FRAME SET 1

241-1 D10 INC. 235

242 231680-3 TORSION SPRING 17 1

243 911333-7 PAN HEAD SCREW M6X20 4

244 911333-7 PAN HEAD SCREW M6X20 2

245 421906-3 CUSHION 2

246 345550-1 STOPPER BRACKET R 2

247 265984-1 HEX.SOCKET BUTTON HEAD BOLT M6 2

248-1 267326-5 FLAT WASHER 7 2

249 345551-9 LEVER 1

250 911333-7 PAN HEAD SCREW M6X20 2

251 421906-3 CUSHION 2

252 345550-1 STOPPER BRACKET R 2

253 911333-7 PAN HEAD SCREW M6X20 4

254 911333-7 PAN HEAD SCREW M6X20 2

255 421906-3 CUSHION 2

256 345549-6 STOPPER BRACKET F 2

257 911333-7 PAN HEAD SCREW M6X20 4

258-1 265555-4 HEX. SOCKET HEAD BOLT M8X50 2

259-1 267399-8 FLAT WASHER 8 2

260 257751-8 SLEEVE 8 2

261-1 265549-9 HEX. SOCKET HEAD BOLT M4X20 1

262-1 931102-0 HEX. NUT M4 1

263-1 188063-7 HANDLE SET 1

263-1 C10 810087-2 CAUTION LABEL 1

263-1 D10 INC. 16

264 240003-4 FAN 80 1

265 941152-7 FLAT WASHER 6 4

266 941152-7 FLAT WASHER 6 4

267 216413-7 THRUST NEEDLE CAGE 1024 1

268 253024-7 FLAT WASHER 10 1

269-1 267319-2 FLAT WASHER 6 2

271-1 267319-2 FLAT WASHER 6 3

272-1 267319-2 FLAT WASHER 6 3

273 418931-3 CAP 2

A01-1 122729-9 RULER ASS'Y 1

A01-1 C10 251858-2 DIAL SCREW M6X15 1

A01-1 C20 265730-2 THUMB SCREW M6X35 1

A01-1 C30 266085-8 H.S.SET SCREW(FLAT POINT)M6X10 1

A01-1 C40 345692-1 GUIDE PLATE 1

A01-1 C51 346628-3 NUT PLATE 1

A01-1 C60 331692-7 RULER A 1

A01-1 D10 INC. A15

A02-1 122732-0 DUST COVER ASS'Y 1

A02-1 C10 264004-8 HEX. LOCK NUT M5-8 1

A02-1 C20 265746-7 THUMB SCREW M5X37 1

A03-1 122852-0 DUST BAG ASS'Y 1

A03-1 C10 410602-8 FASTENER 1

A04-1 122728-1 VISE ASS'Y 1

A04-1 C10 251887-5 SCREW M6X10 1

A04-1 C20 267325-7 FLAT WASHER 6 1

A04-1 C30 265153-4 + PAN HEAD SCREW M5 1

A04-1 C40 271303-1 KNOB 40 1

A04-1 C50 317892-3 VISE ARM 1

A04-1 C60 324663-1 VISE ROD 1

A04-1 C70 345575-5 VISE PLATE 1

A05-1 122730-4 ANGLE RULE ASS'Y 1

A05-1 C10 163454-3 GUIDE PLATE 1

A05-1 C20 252631-3 THUMB NUT M6 1

A05-1 C30 267319-2 FLAT WASHER 6 1

A05-1 C40 271401-1 KNOB 32 1

A05-1 C50 331693-5 RULER B 1

A05-1 C61 266371-7 CUP SQUARE NECK BOLT M6X18 1

A06-2 123104-2 TOP COVER ASS'Y 1

A06-2 C10 233469-5 COMPRESSION SPRING 7 1

A06-2 C20 268129-0 PIN 8 1

A06-2 C30 961012-7 STOP RING E-6 1

A06-2 C40 817283-3 CAUTION LABEL 1

A07 345555-1 FIX PLATE 3

A08 416368-8 ELBOW 1

A09 419043-5 PUSH STICK 1

A10 762001-3 TRIANGULAR RULE 1

A11 921322-4 HEX. BOLT M6X16 3

A12-1 783204-6 HEX. WRENCH 6 1

A15 154580-9 RULE HOLDER COMPLETE 1

A15 C10 810191-7 CAUTION LABEL 1

A16 257060-5 RING 15.8 1

A17 783201-2 HEX. WRENCH 3 1

A18 123262-4 SUB FENCE ASSEMBLY 1

A18 C10 142819-2 SUB FENCE COMPLETE 1

A18 C20 213021-5 O RING 5 1

A18 C30 265753-0 THUMB SCREW M5X24 1

Lokalizacja nr 16
